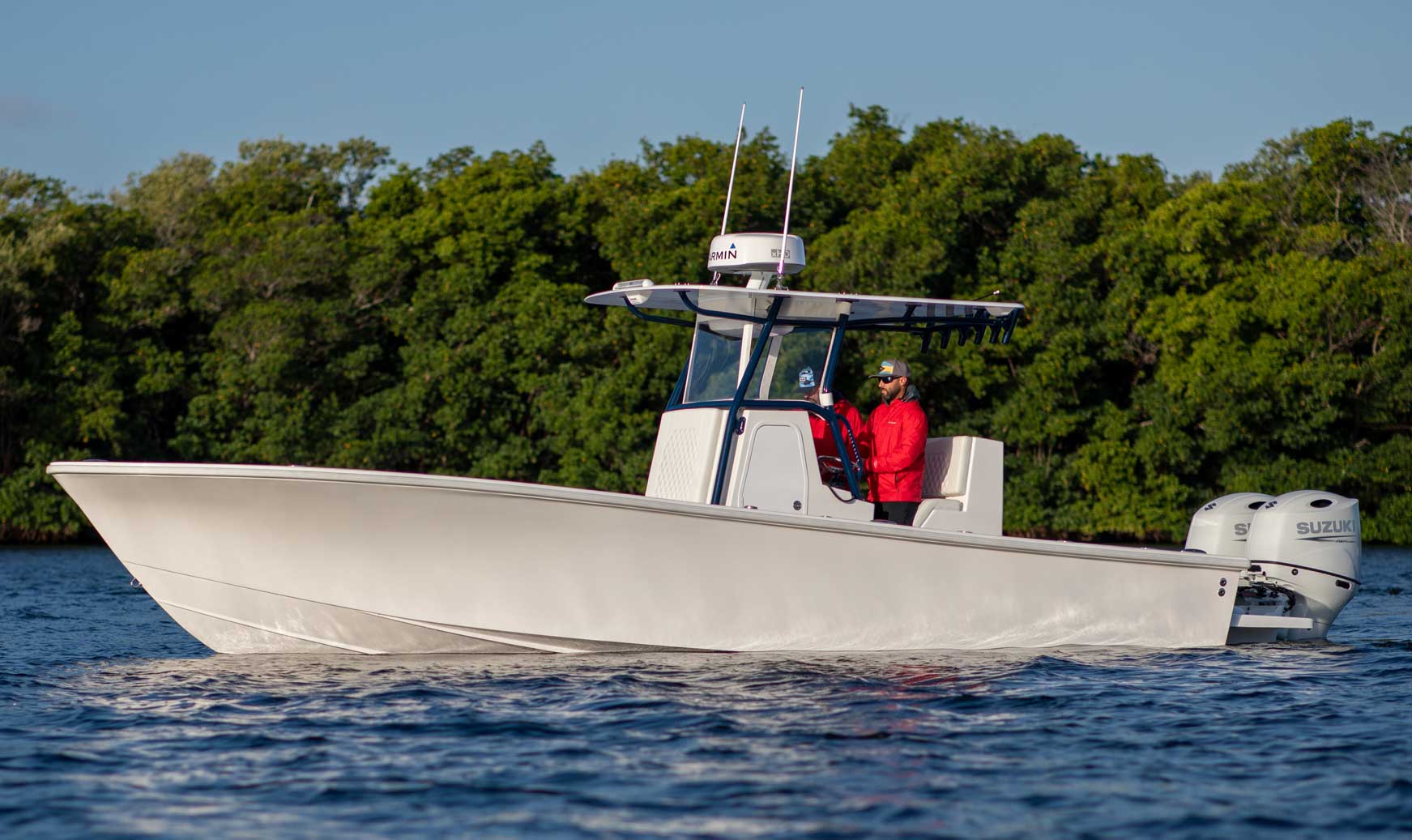

Orion 29CC Taking Flight

Clean Lines.
Modern Touches.
100% Fishing Machine.

The Orion 29CC has been completely re-designed from the ground up to deliver maximum ride quality, efficiency, range and fishability!

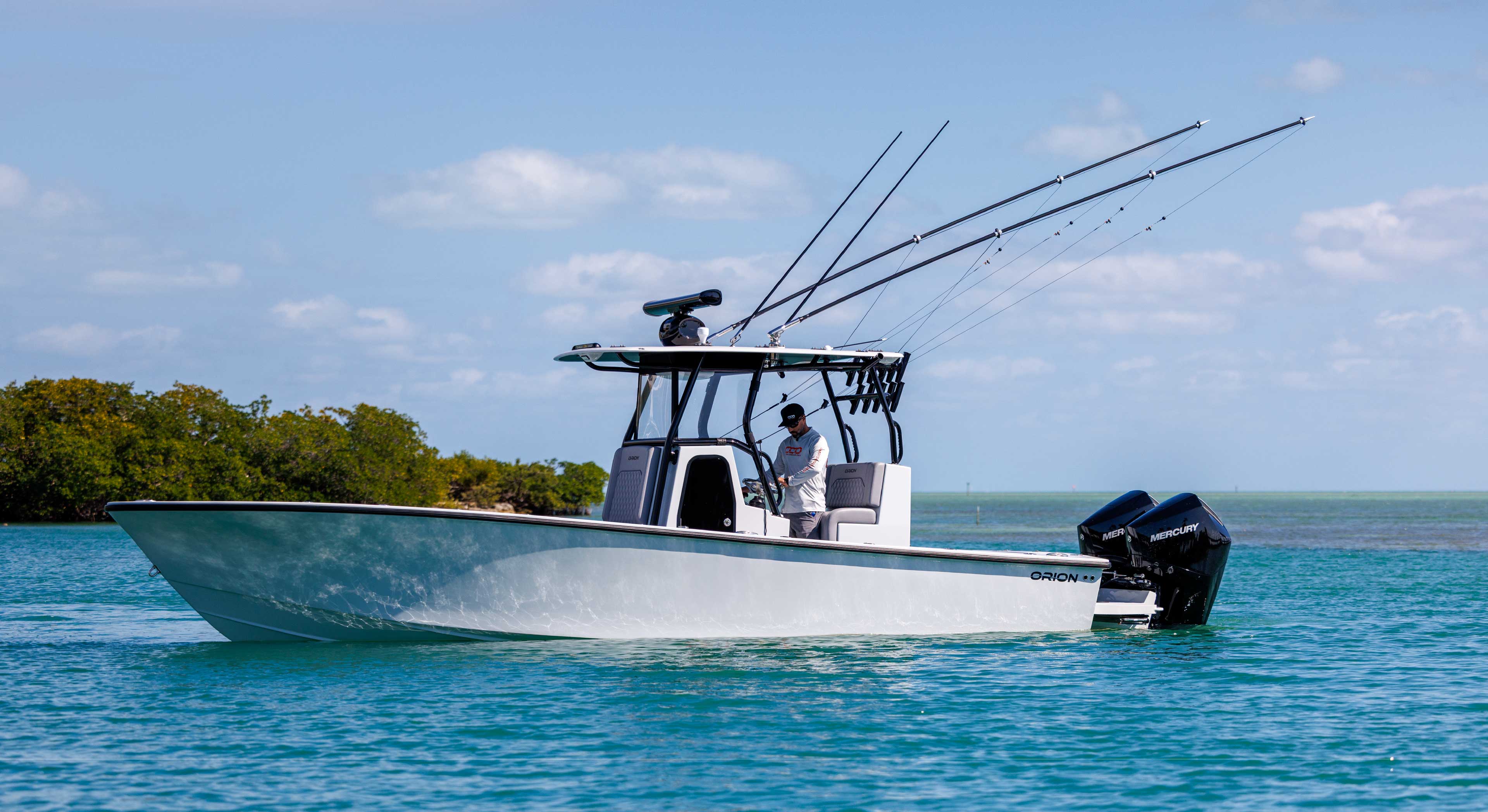

Orion 29CC

Orion 29CC Specifications


Length: 29'
LOA (Length Overall w/ engines): 31' 10"
Beam: 8' 4"
Deadrise: 24°
Freeboard: 23”
Draft: 18” (Approximate)
Bridge Clearance (Approximate): 8'

Dry Weight (Twin Suzuki 200's): 6270lbs
Wet Weight (Twin Suzuki 200's): 7750lbs


Fuel (Standard): 220gal
Fuel (Additional): 100gal
Fresh Water: 20gal
Livewell: 55gal
Max Horsepower: 600hp

Storage (Total: 1408 qts)
Fwd Fish Box: 680qts
Aft Fish Boxes (2): 120qts/ea
Fwd Storage Boxes (2): 160qts/ea
Lounger: 168qts


With Twin Suzuki 200's:
Top Speed: 52mph
Cruise: 33mph
MPG at Cruise: 2.8
Time to plane: 5 secs

With Twin Suzuki 300's:
Top Speed: 65mph
Cruise: 39mph
MPG at Cruise: 2.3
Time to plane: <5 secs

Solid Construction

It all starts with a solid foundation. As with any good quality build, you must have a great base to start from! With a tried and true hand laminated boat with a solid fiberglass hull bottom, you are sure to receive a boat that will last a lifetime. Our CNC cut stringers/bulkheads and coring ensure that all hulls are at the same level of exactness and quality we expect! Our stringers, bulkheads and tanks (fuel/water) are glassed in while the hull is still in the mold to ensure the truest results. This takes a little longer in the mold, but it is well worth the wait!

Orion 29CC Stringers

Designs And Plans

We set out to build a high quality boat for as many people as possible! As such, we believed it would be fitting to allow the public to help us along the way with their input on the design updates along the way. We have teamed up with Center Consoles Only to help us learn what it is you truly want to see in a no-nonsense fishing boat!

Orion 29CC Community Build

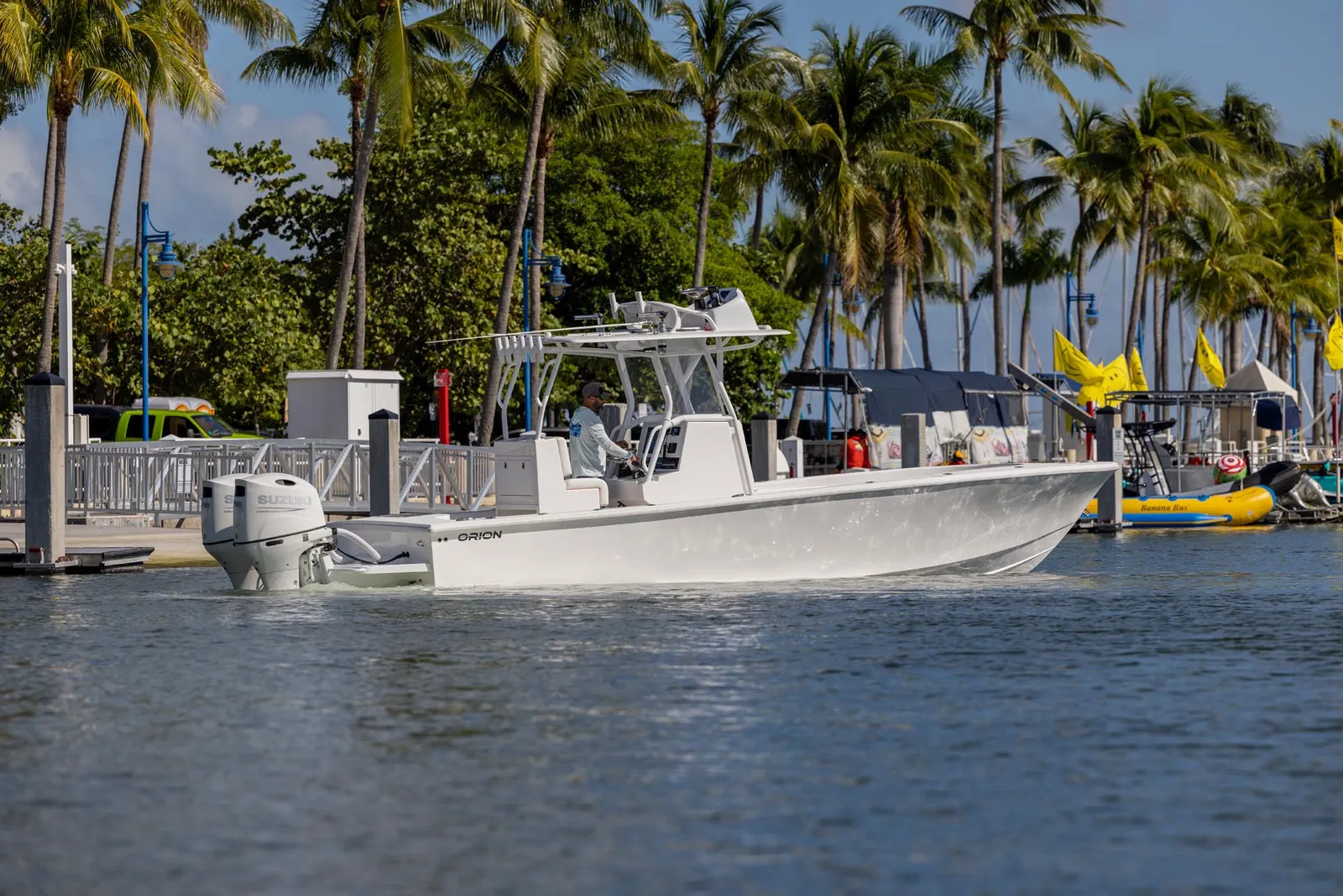

The Orion 29CC In Action

While there is no substitute for stepping on board and feeling it for yourself, this Sea Trial Video that CCO put together for us may do the trick in the interim. Take a look for yourself and if you‘re interested, we‘ll get you on the real thing right away!

Orion 29CC Community Build

Ready to build one for yourself?

Go ahead and click below to customize one with the essentials you need and we‘ll be with you right away!
